Catalyst 5
£1,900.00 exc. VAT Add to cart

Catalyst 5

£1,900.00 exc. VAT

Please Note: Prices stated are for the BASIC chair. The cost of optional extras would increase this price, depending on your choices. If you have any questions or queries please get in touch.



Description

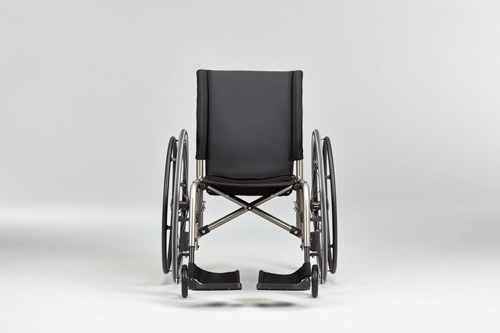

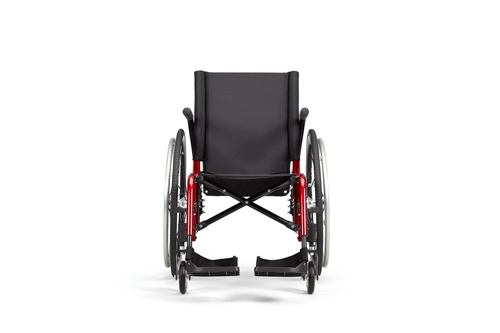

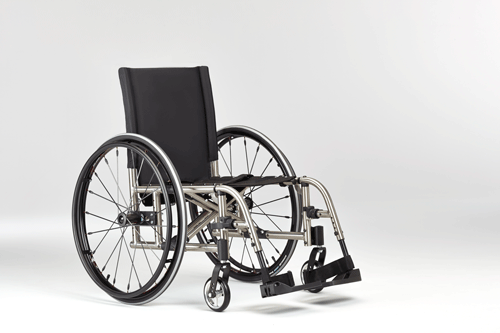

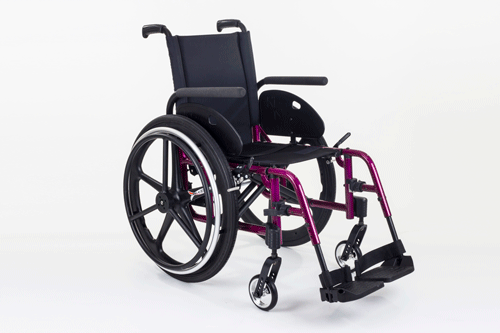

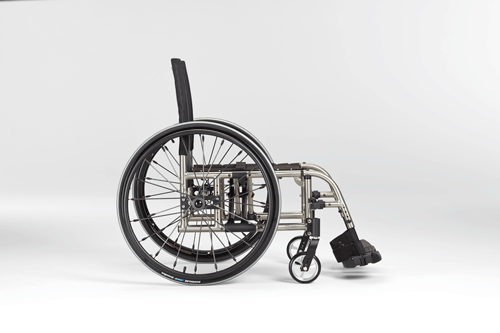

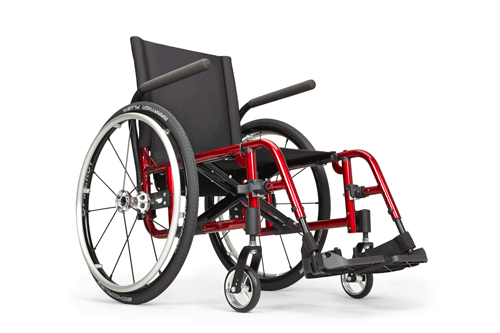

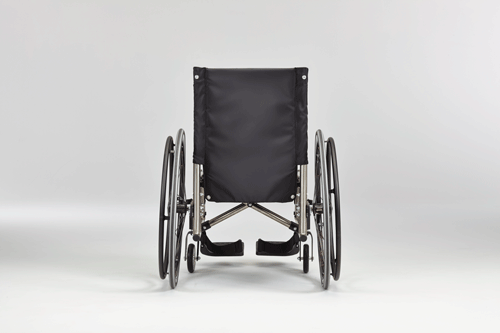

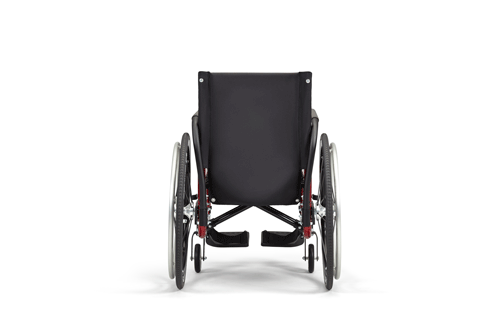

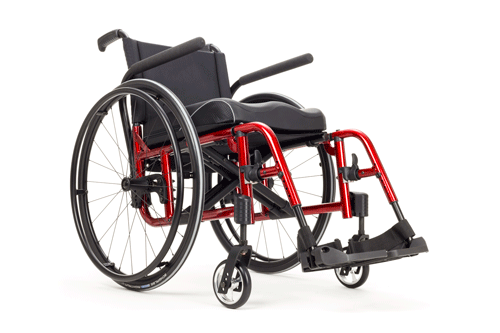

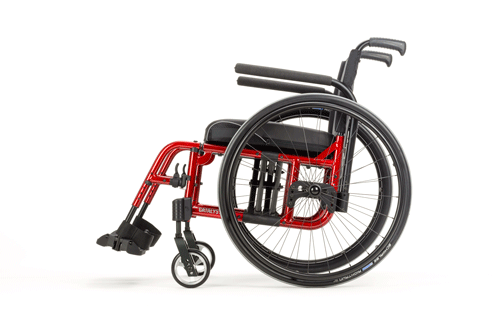

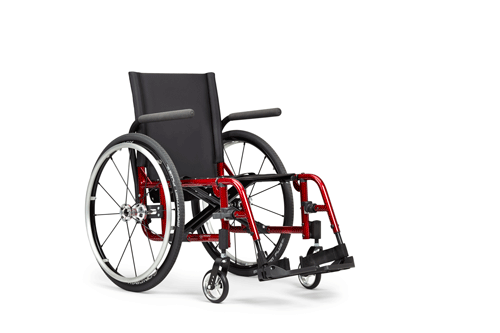

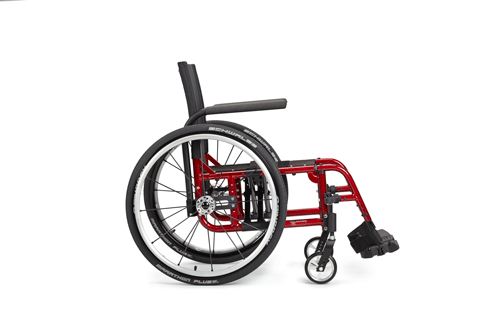

CATALYST 5 | LIGHTWEIGHT FOLDING WHEELCHAIR

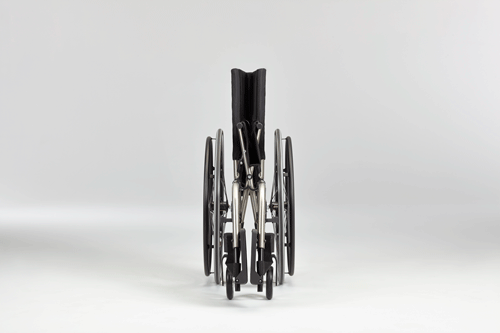

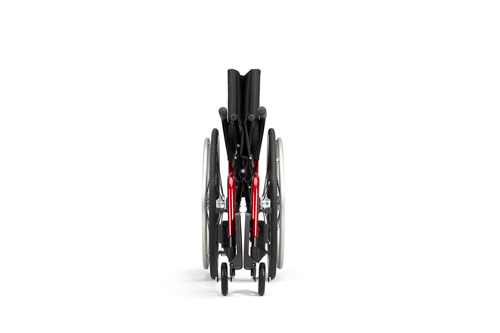

The Ki Mobility the Catalyst 5 has a aluminium frame with optional titanium cross braces. Folding is achieved with a dual interlocking cross brace, for maximum rigidity when propelling, and a power x-hinge that mechanically locks the frame into the unfolded position, rather than using the user’s weight on the seat fabric to hold the frame open.

Catalyst 5 | Technical Specifications

Seat Width:
36 / 38 / 41 / 43 / 46 / 48 (Standard
51 / 53 / 56 (Optional)
Seat Depth:
36 / 38 / 41 / 43 / 46 (Standard)
48 / 51 (Optional)
Seat Height:
34 / 36 / 37 / 38 / 39 / 40 / 42 / 44 / 47 / 50 / 51 / 52 / 53 (Front) (Some Optional)
29 / 30 / 32 / 33 / 34 / 36 / 37 / 38 / 39 / 40 / 42 / 44 / 47 / 50 (Rear) (Some Optional)
Backrest Height:
22 / 24 / 27 / 29 / 32 / 34 / 37 / 39 / 42 / 44 / 47 / 50 (Standard)
33 / 36 / 38 / 41 / 43 / 46 / 48 / 51 / 53 / 56 / 58 / 61 / 66 (Optional)
Backrest Angle:
0° (Standard)
0° to 65°, adjustable (Optional)
Front Frame Angle: 60° / 70° / 80° / 90°
Footplate Distance: 13 to 61 (Some Optional)
Camber: 0°, 2°, 4°
Maximum User Weight:
136 kg
158 kg (Optional)
Total Weight:
8.57 kg (Catalyst 5 Ti)
Weight without Rear Wheels:
4.94 kg (Catalyst 5Ti)

Contact us for more information.
