The Apex A Rigid Aluminium Wheelchair
The Apex A Aluminium wheelchair by Motion Composites is the perfect combination of lightness, sturdiness, performance, adjustability and style. Its bold design and innovative approach have redefined perceptions of rigid wheelchairs. The triple-butted aluminium and strategic touch of carbon fibre strike a perfect balance, making this chair an example of modernity and lightness.
Cantilever Frame: Frame assembled by a precision fixing system offering exceptional rigidity and maximizing efficiency while allowing adjustments
Back Rest Adjustment: Offers wide range of adjustments to fit any position
Standard Carbon Fibre Rear Rigidizer Bar: Allows for optimal propulsion and frame stability
Standard Carbon Fibre Camber Tube: Adds carbon fibre strength and reduces overall weigh.
Triple-Butted Tube: Reduces weight in non-critical sections and increases strength where needed

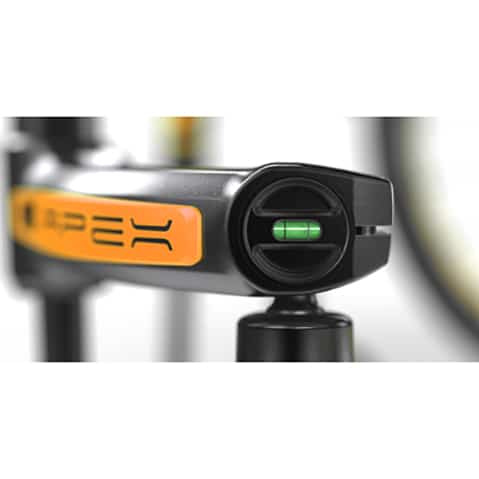

Bubble Levels: Highly accurate and calibrated system for a quick and perfect adjustment
Front Bumper: Provides style and protection

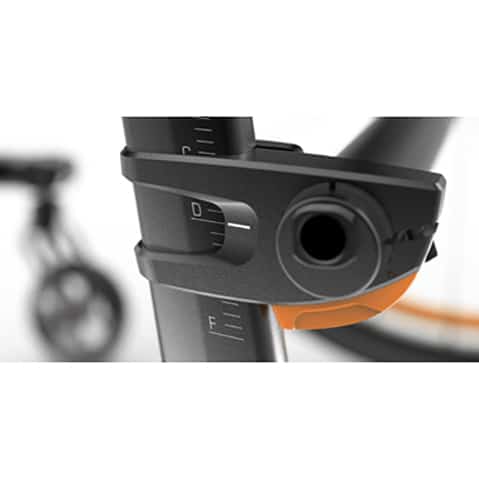

Rear Axle Plate: Provides a multitude of adjustments while maximizing stability and responsiveness
- FRAME: Rigid
- MATERIAL: Triple-butted aluminium
- TRANSPORT WEIGHT: 10.6 lb. | 4.8 kg (16 x 16 without rear wheels, wheel locks, armrests, cushion and anti-tippers)
- LIGHTEST CONFIGURATION: 18.0 lb. | 8.2 kg, without wheel locks and wheels
- WIDTH: 12 in. to 20 in. | 30.5 cm to 50.8 cm
- DEPTH: 12 in. to 20 in. | 30.5 cm to 50.8 cm
- FRONT SEAT-TO-FLOOR HEIGHT: 14 in. to 21 in. | 35.6 cm to 53.3 cm (with 3 in. to 6 in. caster)
- REAR SEAT-TO-FLOOR HEIGHT: 14 in. to 20 in. | 35.6 cm to 50.8 cm (with 20 in. to 26 in. wheel)
- BACK HEIGHT: 9 in. to 21 in. | 22.9 cm to 53.3 cm
- ARMREST HEIGHT: 8 in. to 14 in. | 20.3 cm to 35.6 cm
- FRONT FRAME ANGLE: 70°, 75°, 80°, 85°, 90°
- BACK ANGLE: 80° to 101°
- WHEEL CAMBER: 0°, 2°, 4°, 6°, 8°
- CENTER OF GRAVITY: 0 in. to 6 in. | 0 cm to 15.2 cm
- OVERALL WIDTH: 18 ¾ in. min. to 31 ½ in. max. 47.6 cm min. to 80 cm max.
- WEIGHT LIMIT: 265 lb. | 120 kg
Contact us for more information.
