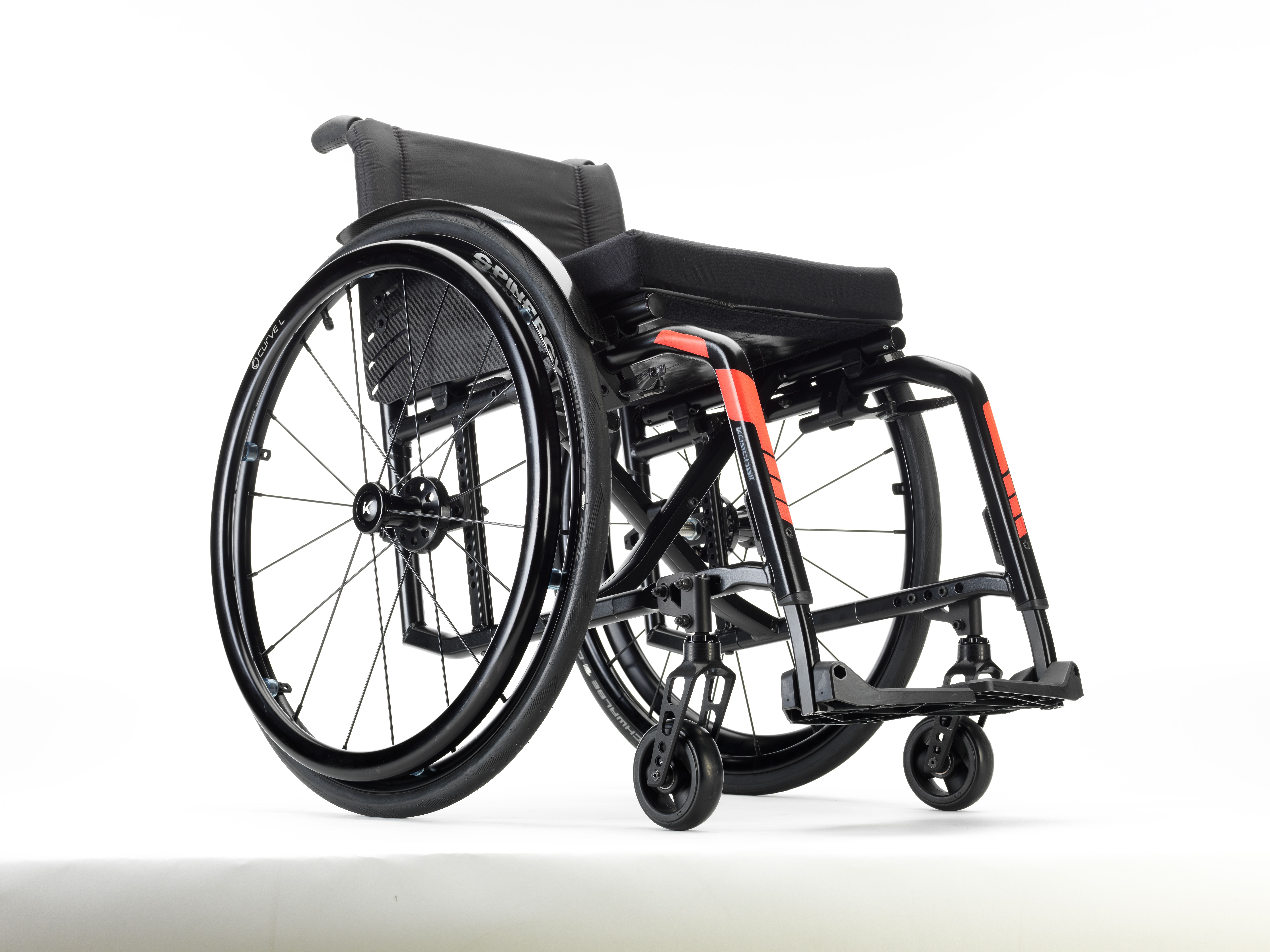

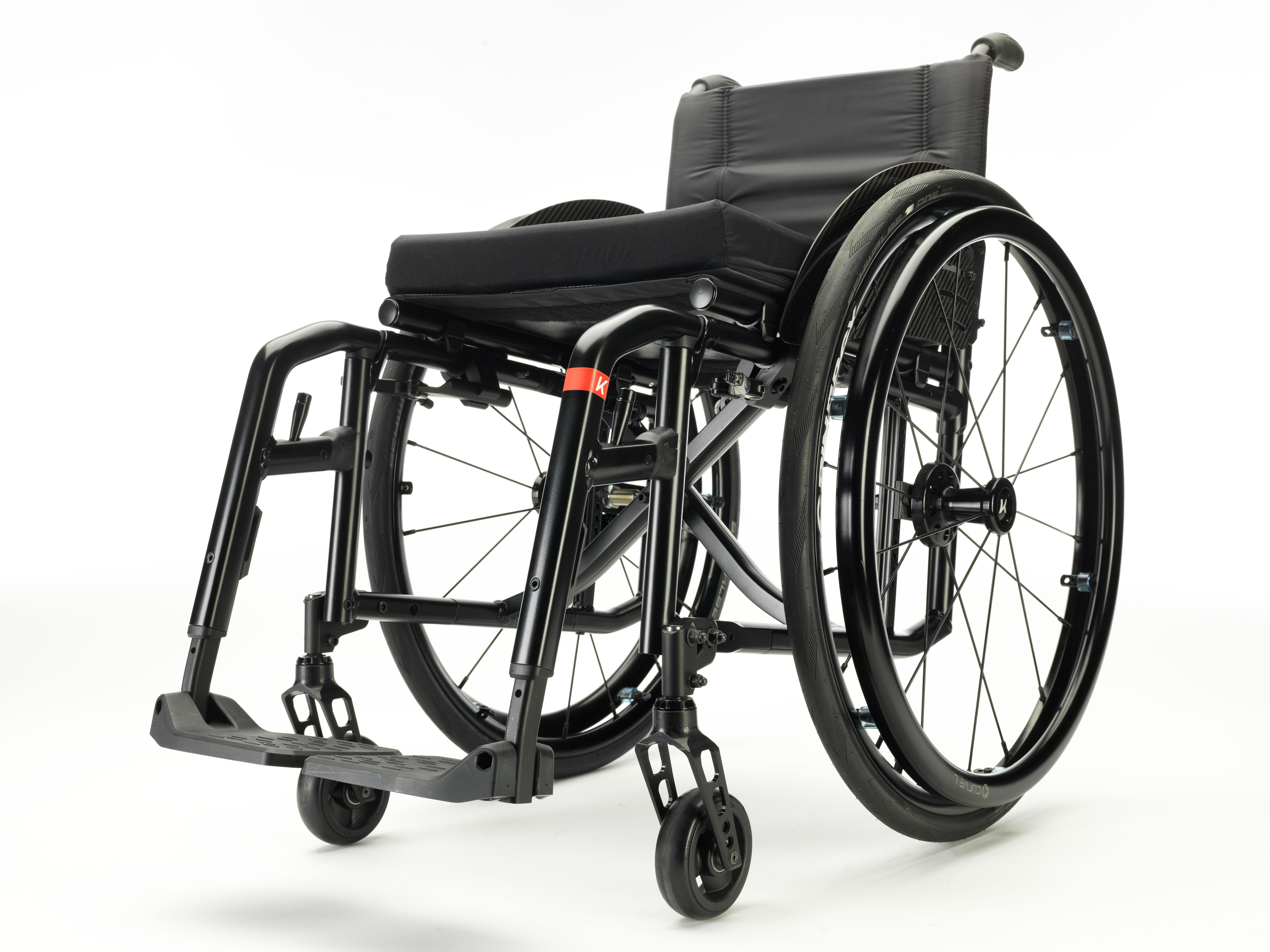

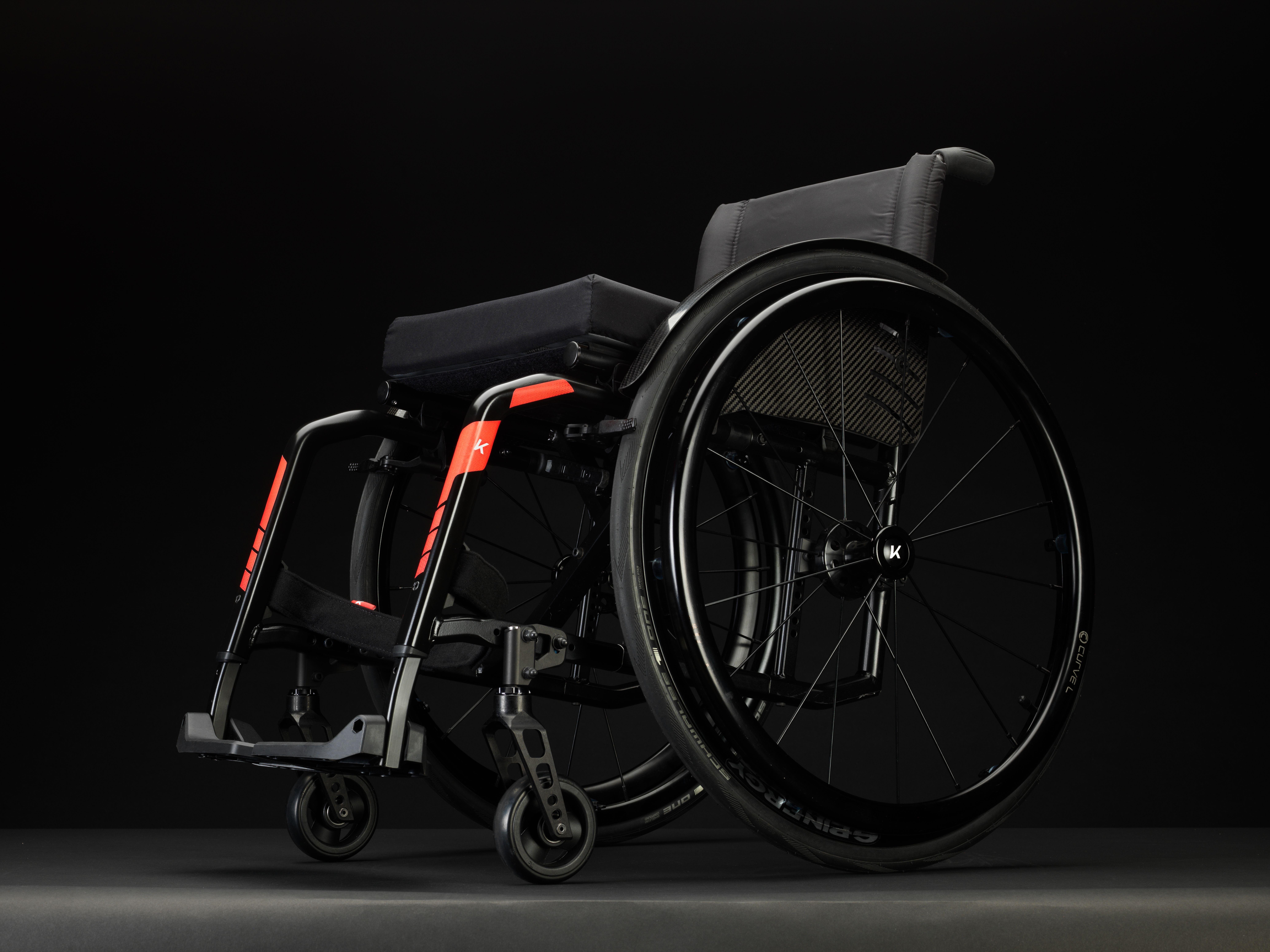

Kuschall Compact 2.0 Lightweight Folding Wheelchair
Kuschall Compact 2.0 is the absolute standard for reliability and high-class quality. The wheelchair comes with swing away or fixed leg rest, which can easily be adapted to suit your needs and enhance your comfort. Whether you need a higher level of support and stability, or a more active set up the Compact’s outstanding functionality will fit your lifestyle.
Hydroforming has brought added value to the DNA of the Compact range. While versatility and comfort remain unchanged, the weight has been reduced by up to 500gr. The profile of the hydroformed frame offers more stiffness, where necessary, and a contemporary appeal to the overall look.
FRONT FRAME: Complete redesign of the front frame and legrest hangers. Hydroforming has made it possible to obtain a weight reduction of up to 500 gr.
LEGREST: Choose your wheelchair with swing away legrests, ideal for transport or transfers, or fixed front frame at 70° or 80° for greater rigidity and active appearance.
FOOTPLATE: The new footplate range fits all seat widths and aligns with modern design language and feature an anti slip surface for increased comfort and support.

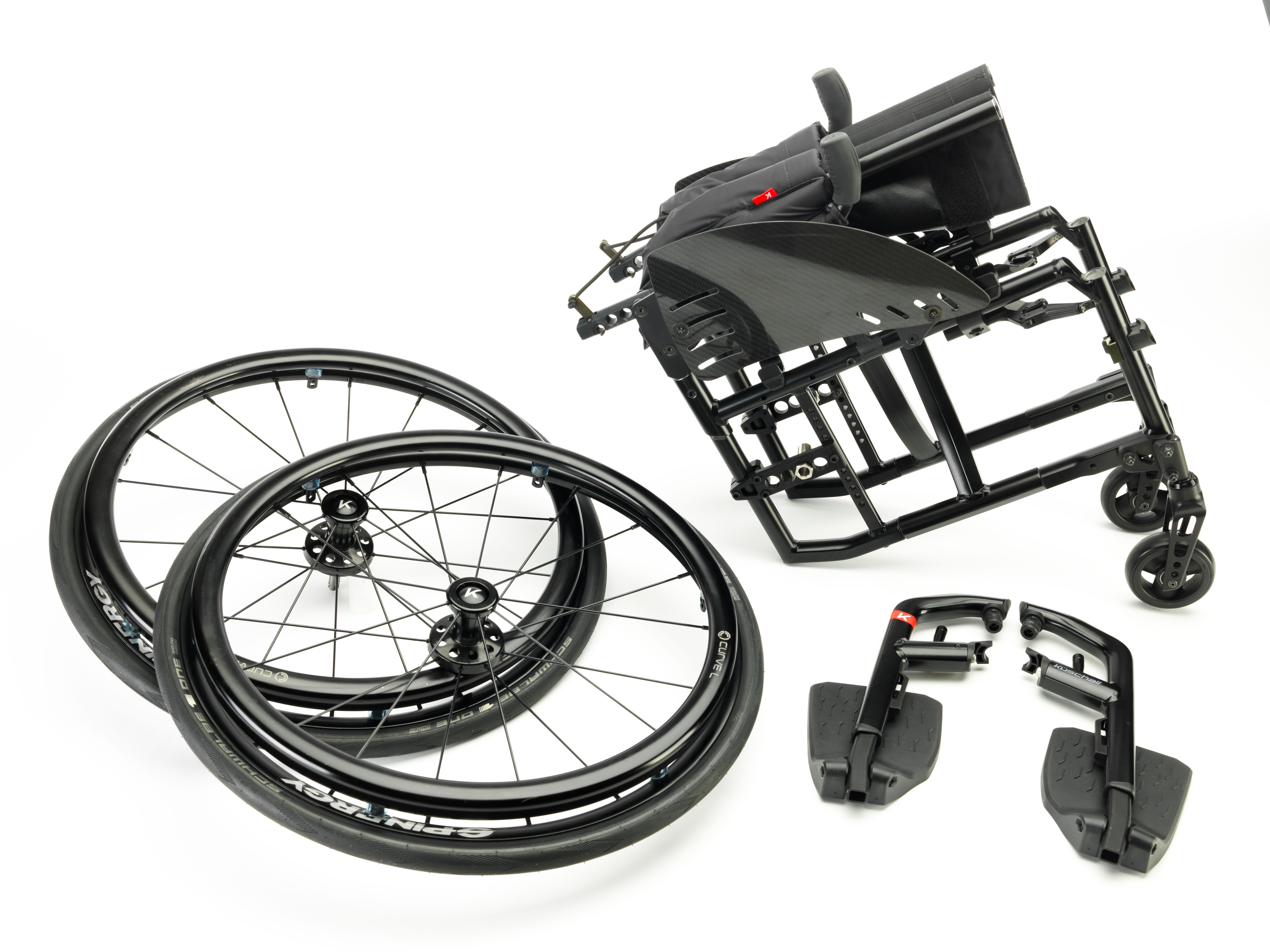

FOLDING SYSTEM: Easy folding is a key feature of the Compact. An ideal choice if you have limited hand function or reduced strength.

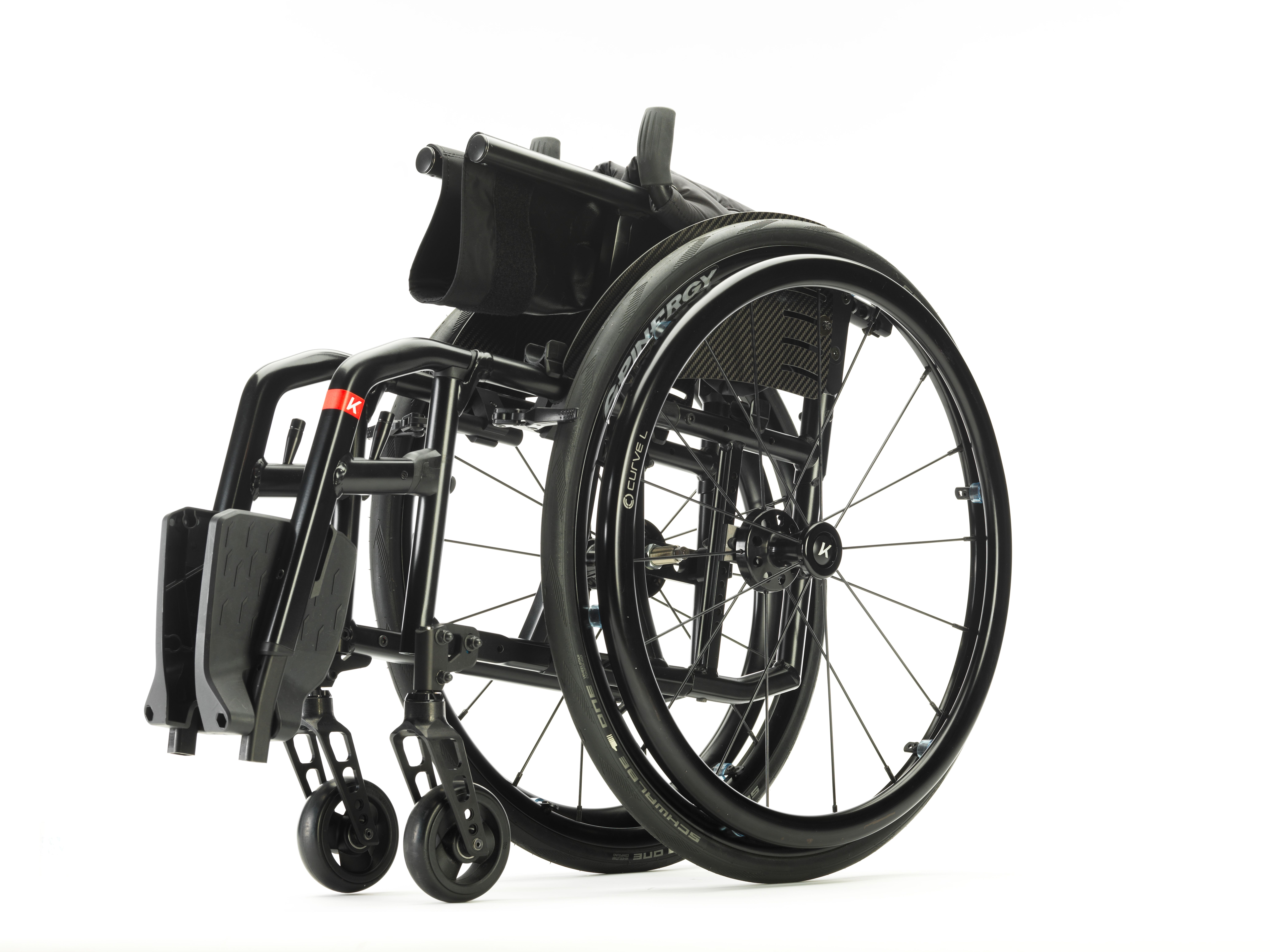

CROSS BRACE: Unique design of the cross brace allows the optional folding backrest to fold neatly over the seat rails for compact storage and easy transportation.
KEEP ON TRACK: Intuitive and unique castor housing adjustment, to ensure your wheelchair is always performing at its most energy efficient to keep you propelling easier for longer.
FORKS: New clean design and integrated bearings. Reduces the amount of debris collecting in the bearings, for increased performance.
BUILT IN RIGIDITY: The built in rigidity makes the Compact an energy efficient wheelchair to propel, comparable to that of a rigid wheelchair. It will allow you to propel easier and for longer to support you with a range of daily activities.
OUTSTANDING FUNCTIONALITY: Unique features and benefits include swingaway 70° or 80° legrests complete with an adjustable precision locking mechanism for minimal movement of the legrests. A foldable backrest option makes this chair a small and compact package for transport.
ENHANCED COMFORT: The Compact offers a wide range of options and accessories, to support your comfort needs and suit your personal style.
LIGHTER WITH HYDROFORMING: The latest Hydroform technology has transformed the Compact into a lighter and modern wheelchair, with an impressive weight saving of 500gr. The unique frame profile also provides an ergonomic grip to support comfortable repositioning and transfers.
Kuschall Compact Technical Specification
- SEAT WIDTH: 280 – 500 mm (in increments of 20 mm)
- SEAT DEPTH: 320 – 500 mm (in increments of 20 mm)
- LOWER LEG LENGTH: 200 – 510 mm (in increments of 10 mm)
- BACKREST HEIGHT: 300 – 510 mm (in increments of 15 mm)
- BACKREST ANGLE: 82°/86°/90°/ – 94°/98°/102°
- SEAT HEIGHT: front: 370 – 530 mm, rear: 360 – 500 mm, (increments of 10 mm)
- FRAME ANGLE: 70º / 80º (Straight or tapered)
- TOTAL WIDTH: Seat width + 160 mm
- TOTAL WIDTH FOLDED: approx. 290 mm
- TOTAL LENGTH: 70°: approx. 870 – 1220 mm, 80°: approx. 850 – 1200 mm
- CAMBER: 0º / 3º
- TOTAL WEIGHT UNLOADED: approx. 10.5 kg (swing away), approx. 9.6 kg (fixed frame)
- TRANSPORT WEIGHT: approx. 7.8 kg (swing away), approx. 6.7 kg (fixed frame)
- MAX. USER WEIGHT: 130 kg
- CRASH TEST: Approved – Fulfils the requirements of ISO 7176-19
*All measurements and weights indicated are based on seat width 400 mm and seat depth 400 mm in the lightest and most compact configuration.
Weight and measurements can change with the different configurations.
Contact us for more information.
