Description

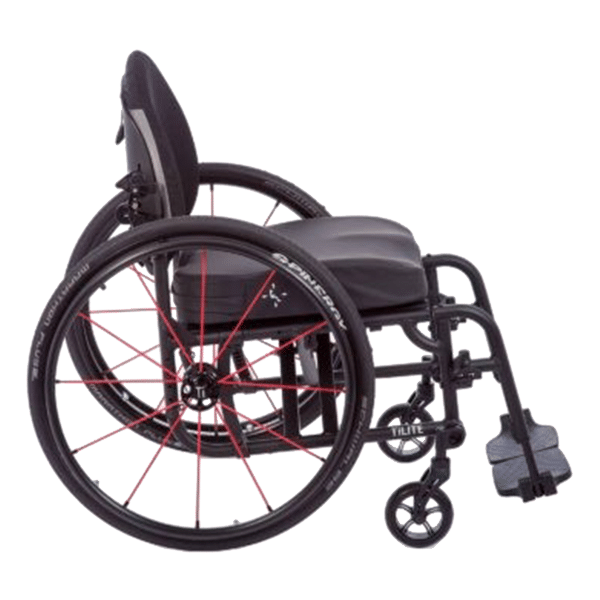

TiLite Aero X Lightweight Folding Wheelchair
The TiLite Aero X features an innovative modular design with clean modern lines and configurability. Featuring multiple configurations that include heavy-duty, hemi, and amputee options. Add superior rolling dynamics and full adjustability, and you get an Aero X that excels in both performance and price.
Modular Design: The modular frame design of the Aero X facilitates configurability in the field. This includes adding aftermarket seating systems, switching fixed and swing away front ends, and growing chair width and/or depth to meet changing customer needs.
Full Adjustability: The Tru-Fit system opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your wheelchair because you are not limited to a series of pre-set holes.
Box Frame: We’ve done it. TiLite has taken this standard wheelchair design and added efficiency in both function and manufacturing. Here is a design that is strong, efficient, and cost effective so that you get more of what you want.
Folding Frame: The Aero X folding frame is compact, with a fluid, easy-to-use folding mechanism. Side-to-side folding minimizes the folding width and maximizes ease of transportation. These features are “must have” advantages for anyone who chooses a folding chair.
Aero X Options: Titanium Frame Upgrade to get the benefits of titanium frames: Lighter weight, higher strength, and less vibration.
Performance 5-Spoke Soft Roll Wheel weighs just 1.6 ounces.
Tattoo Finishes: TiLite chairs feature Tattooed Finishes. These are not stickers. These are real tattoos permanently imprinted onto the finish of your new titanium or aluminium TiLite chair frame!
TiLite Aero X Technical specifications
- Minimal Seat Width: 30.48 cm
- Maximum Seat Width: 55.88 cm
- Minimal Seat Depth: 30.48 cm
- Maximal Seat Depth: 50.8 cm
- Frame Style: Folding
- Frame Material: Aluminium with titanium upgrade available
- Frame Options: Fixed Front End, Swing Away (All-In-One Swing In, Swing Out, & Removable), Hemi Height Frame, Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame
- Ti Fit: N/A
- Adjustability: Full adjust
- Growable: Optional
- Custom Configuration: Yes
- Frame Options: Fixed Front End, Swing Away (All-In-One Swing In, Swing Out, & Removable), Hemi Height Frame, Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame Camber:0°, 2°, 4°, or 6°
- Front Frame Angle: Fixed Front – 70°, 80°, or 85°, Swing Away – 70°, 80°, 85°, or 90°
- Footrest Width Options: Standard Taper
- Seat Back Type: Folding Seat Back
- Centre Of Gravity Adjustment: 15 cm
- Weight Limit: 120.2 kg
- Transit Options: Transit Tie-Down, Transport Bracket
- Movement style: Full assistance, Both legs mostly, Hemi (one leg and one arm)
- Weight Limit: 120.2 kg
Contact us for more information.
